Objective : Mempelajari konfigurasi membuat Jaringan MPLS VPN dengan menggunakan Routing Protocol OSPF pada koneksi Router PE dan CE
Topologi Lab
Konfigurasi PE1
!
ip vrf bca.kiri
rd 65000:2
route-target export 65000:2
route-target import 65000:2
!
ip vrf bri.kiri
rd 65000:1
route-target export 65000:1
route-target import 65000:1
!
ip vrf bca.kiri
rd 65000:2
route-target export 65000:2
route-target import 65000:2
!
ip vrf bri.kiri
rd 65000:1
route-target export 65000:1
route-target import 65000:1
!
interface Loopback0
ip address 1.1.1.1 255.255.255.255
!
interface FastEthernet1/0
description ###Link to P Router###
ip address 12.12.12.1 255.255.255.0
duplex auto
speed auto
mpls ip
!
interface FastEthernet1/1
description ###Link to BCA###
ip vrf forwarding bca.kiri
ip address 10.10.10.1 255.255.255.252
duplex auto
speed auto
!
interface FastEthernet2/0
description ###Link to BRI###
ip vrf forwarding bri.kiri
ip address 10.10.10.1 255.255.255.252
duplex auto
speed auto
!
router ospf 1
log-adjacency-changes
network 1.1.1.1 0.0.0.0 area 0
network 12.12.12.1 0.0.0.0 area 0
!
router bgp 65000
no synchronization
bgp log-neighbor-changes
neighbor 3.3.3.3 remote-as 65000
neighbor 3.3.3.3 update-source Loopback0
no auto-summary
!
address-family vpnv4
neighbor 3.3.3.3 activate
neighbor 3.3.3.3 send-community extended
exit-address-family
!
Konfigurasi P Router
!
interface Loopback0
ip address 2.2.2.2 255.255.255.255
!
interface FastEthernet1/0
description ###Link to PE1 Router###
ip address 12.12.12.2 255.255.255.0
duplex auto
speed auto
mpls ip
!
interface FastEthernet1/1
description ###Link to PE2 Router###
ip address 23.23.23.2 255.255.255.0
duplex auto
speed auto
mpls ip
!
router ospf 1
log-adjacency-changes
network 2.2.2.2 0.0.0.0 area 0
network 12.12.12.2 0.0.0.0 area 0
network 23.23.23.2 0.0.0.0 area 0
!
Konfigurasi PE2
!
ip vrf bca.kanan
rd 65000:2
route-target export 65000:2
route-target import 65000:2
!
ip vrf bri.kanan
rd 65000:1
route-target export 65000:1
route-target import 65000:1
!
ip vrf bca.kanan
rd 65000:2
route-target export 65000:2
route-target import 65000:2
!
ip vrf bri.kanan
rd 65000:1
route-target export 65000:1
route-target import 65000:1
!
interface Loopback0
ip address 3.3.3.3 255.255.255.255
!
interface FastEthernet1/0
description ###Link to P Router###
ip address 23.23.23.3 255.255.255.0
duplex auto
speed auto
mpls ip
!
interface FastEthernet1/1
description ###Link to BRI###
ip vrf forwarding bri.kanan
ip address 10.10.10.5 255.255.255.252
duplex auto
speed auto
!
interface FastEthernet2/0
description ###Link to BCA###
ip vrf forwarding bca.kanan
ip address 10.10.10.5 255.255.255.252
duplex auto
speed auto
!
router ospf 1
log-adjacency-changes
network 3.3.3.3 0.0.0.0 area 0
network 23.23.23.3 0.0.0.0 area 0
!
router bgp 65000
no synchronization
bgp log-neighbor-changes
neighbor 1.1.1.1 remote-as 65000
neighbor 1.1.1.1 update-source Loopback0
no auto-summary
!
address-family vpnv4
neighbor 1.1.1.1 activate
neighbor 1.1.1.1 send-community extended
exit-address-family
!
Konfigurasi CE1_BRI
!
interface Loopback1
ip address 11.11.11.11 255.255.255.255
!
interface FastEthernet1/0
description ###Link to MPLS###
ip address 10.10.10.2 255.255.255.252
duplex auto
speed auto
!
router ospf 1
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
!
Konfigurasi CE2_BRI
!
interface Loopback1
ip address 22.22.22.22 255.255.255.255
!
interface FastEthernet1/0
description ###Link to MPLS###
ip address 10.10.10.6 255.255.255.252
duplex auto
speed auto
!
router ospf 1
log-adjacency-changes
network 0.0.0.0 255.255.255.255 area 0
!
Konfigurasi PE - CE dengan menggunakan OSPF Routing (CE1_BRI dan CE2_BRI)
Verifikasi Lab

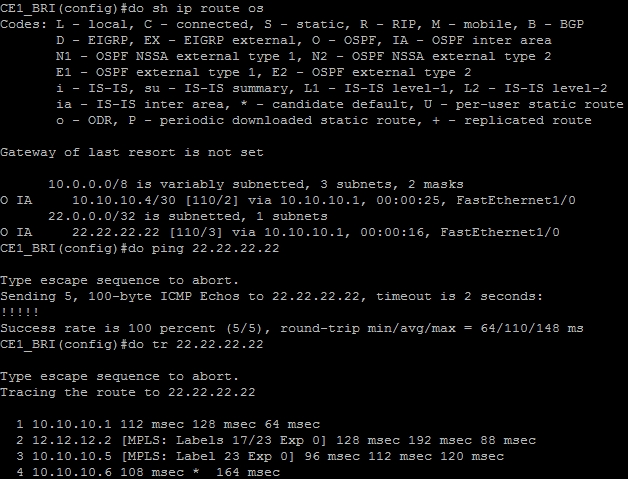

Periksa routing tabelnya, ping dan lakukan traceroute
