Lab 79. IPv6 Frame Relay

Objective : Mempelajari bagaimana mengkonfigurasikan Frame Relay pada IPv6.

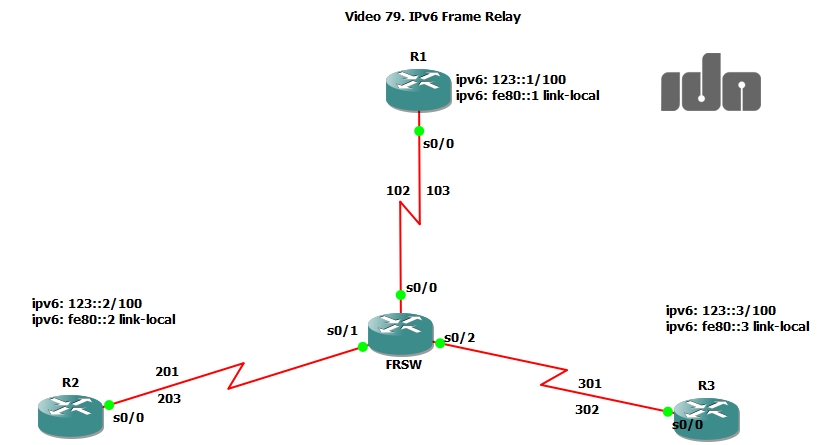

Topologi Lab
Konfigurasi FRSW

!
frame-relay switching
!
interface Serial0/0
 no ip address
 encapsulation frame-relay
 clock rate 2000000
 frame-relay lmi-type cisco
 frame-relay intf-type dce
 frame-relay route 102 interface Serial0/1 201
 frame-relay route 103 interface Serial0/2 301
!
interface Serial0/1
 no ip address
 encapsulation frame-relay
 clock rate 2000000
 frame-relay lmi-type cisco
 frame-relay intf-type dce
 frame-relay route 201 interface Serial0/0 102
 frame-relay route 203 interface Serial0/2 302
!
interface Serial0/2
 no ip address
 encapsulation frame-relay
 clock rate 2000000
 frame-relay lmi-type cisco
 frame-relay intf-type dce
 frame-relay route 301 interface Serial0/0 103
 frame-relay route 302 interface Serial0/1 203
!

Konfigurasi R1

!
ipv6 unicast-routing
!
interface Loopback0
 no ip address
 ipv6 address 1::1/128
 ipv6 rip 1 enable
!
interface Serial0/0
 no ip address
 encapsulation frame-relay
 ipv6 address FE80::1 link-local
 ipv6 address 123::1/100
 ipv6 rip 1 enable
 clock rate 2000000
 frame-relay map ipv6 FE80::3 103
 frame-relay map ipv6 123::3 103 broadcast
 frame-relay map ipv6 FE80::2 102
 frame-relay map ipv6 123::2 102 broadcast
!

Konfigurasi R2

!
ipv6 unicast-routing
!
interface Loopback0
 no ip address
 ipv6 address 2::2/128
 ipv6 rip 1 enable
!
interface Serial0/0
 no ip address
 encapsulation frame-relay
 ipv6 address FE80::2 link-local
 ipv6 address 123::2/100
 ipv6 rip 1 enable
 clock rate 2000000
 frame-relay map ipv6 FE80::3 203
 frame-relay map ipv6 123::3 203 broadcast
 frame-relay map ipv6 FE80::1 201
 frame-relay map ipv6 123::1 201 broadcast
!

Konfigurasi R3

!
ipv6 unicast-routing
!
interface Loopback0
 no ip address
 ipv6 address 3::3/128
 ipv6 rip 1 enable
!
interface Serial0/0
 no ip address
 encapsulation frame-relay
 ipv6 address FE80::3 link-local
 ipv6 address 123::3/100
 ipv6 rip 1 enable
 clock rate 2000000
 frame-relay map ipv6 FE80::2 302
 frame-relay map ipv6 123::2 302 broadcast
 frame-relay map ipv6 FE80::1 301
 frame-relay map ipv6 123::1 301 broadcast
!

Verifikasi Lab

Lakukan tes ping terhadap semua ip loopback router
